36” PILE SPLICES
36" Sq. Voided Piles with 28-.6 dia. Strands cast by Gulf Coast Prestress and Standard Concrete Products for Louisiana DOTD Projects.
Splices have full moment and tension capacity of piles.

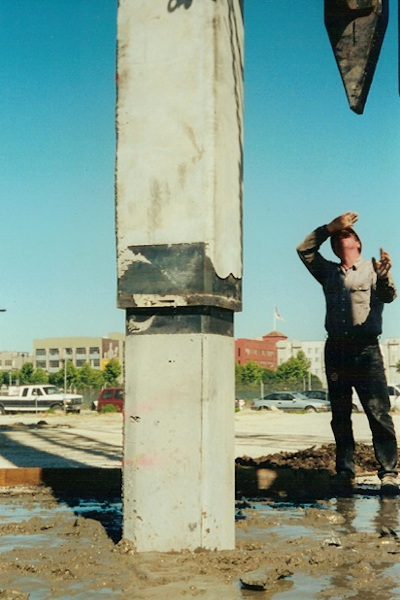

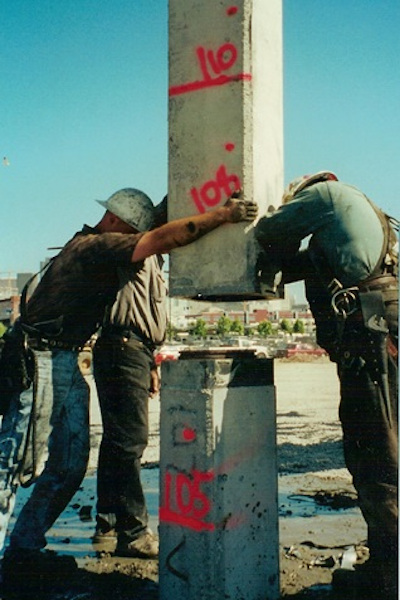

HIGHEST CAPACITY 14" Sq. SPLICE IN THE WORLD
14" Sq. Piles with Tension Capacity of 480 K and Moment Capacity of 150 K-ft.
For San Francisco Mission Bay Project piles cast by Kie-Con.

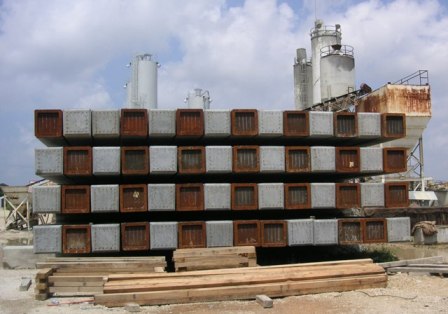

1500 - 24" Sq. SPLICES FOR LA DOTD LA1 CAUSEWAY
24" Sq. Voided Piles with 20-1/2” Dia. Strands cast by Boykin Bros., Baton Rouge, LA over a period of 1 year.

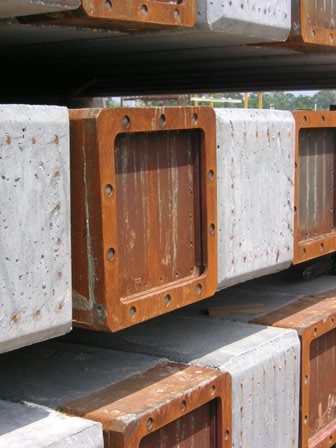

24" SQ. FEMALE SPLICE HALF (BOTTOM SEGMENT)
24" SQ. FEMALE SPLICE DETAIL
SPLICES FOR 16" SQ. x 14" SQ. PILES
Innovative Pile Design for Chevron Refinery Upgrade
Splices join 16" Sq. top segments with high moment capacity with 14" Sq. bottom segments
