An interlocking splice for prestressed concrete piles

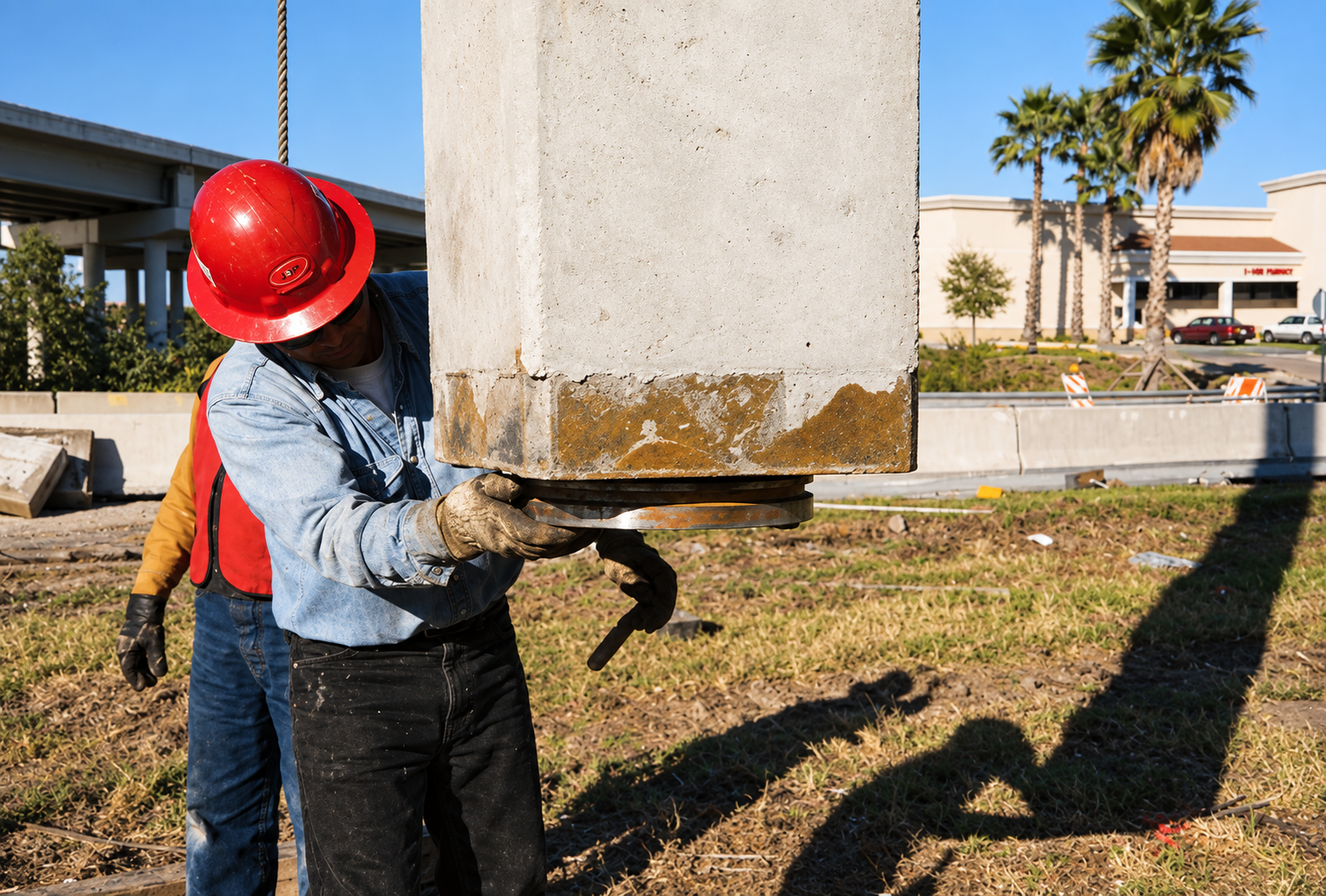

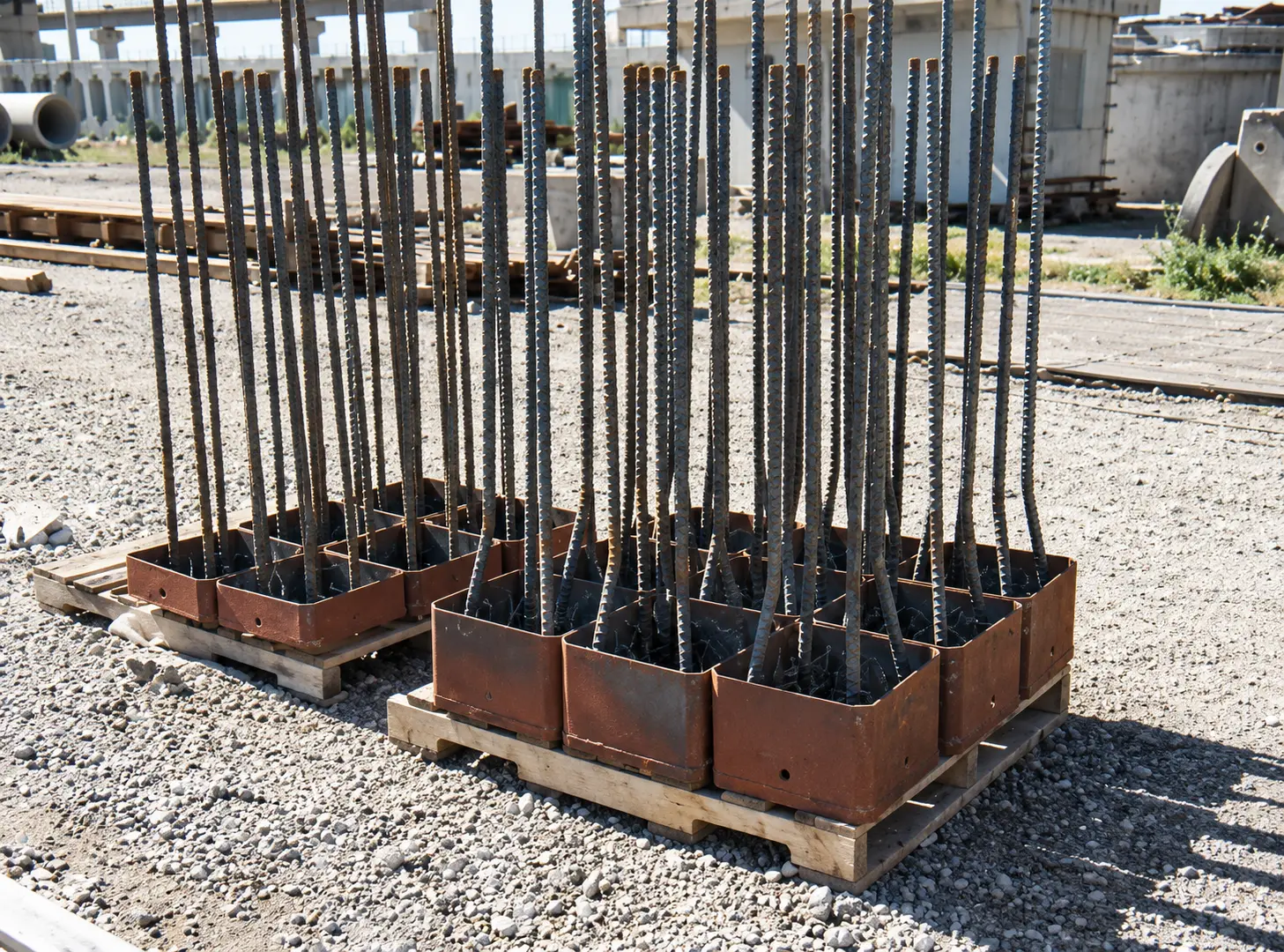

KIE-LOCK splices are interlocking steel connectors, precast into prestressed concrete piles. When a driven section reaches its limit before the pile reaches bearing, the splice locks the next section on so driving can continue.
Where KIE-LOCK earns its place
If pile lengths are too long for casting, hauling, or driving in one piece.
Where low head-room or height restrictions require short segments.
Enables the use of smaller equipment for cheaper hauling or driving.
Where it is in the public safety interest to loft and drive shorter segments.
A range of designs, matched to your pile
Standard shapes & sizes
Square, Octagonal, Hexagonal, Round
- 12"
- 14"
- 15"
- 16"
- 18"
- 20"
- 24"
- 30"
- 36"
Need a specific size? Contact us
Beyond the standard range above, we confirm the configuration against your actual pile and specification. Send us:
- 01STEP 01
Pile size, shape & design
Pile size and cross-section shape, plus pile design: concrete strength, strand size, number, and location.
- 02STEP 02
Specification & reviewing agency
Project specification and reviewing agency, including any particular bending and/or tension requirements on the drawing or in the specs, or epoxy dowel splice details if given as an option.
- 03STEP 03
Possible quantities
Minimum and maximum number, and how many test piles. Whether a small quantity of indicator/test piles is needed before production piles are ordered.
- 04STEP 04
Schedule & delivery
Best approximation of schedule — when test pile splices and production pile splices would be needed at the casting yard — plus project location.
What it gives the project
Built only for prestressed concrete piles
The only pile splice in the world engineered for concrete prestressed piles.
Meets any pile capacity or load
Designed to meet or exceed any pile capacity or load requirement.
Adaptable to any pile
Adaptable to virtually any pile size, shape, and strand pattern.
Positive locking
Cannot come apart during driving.

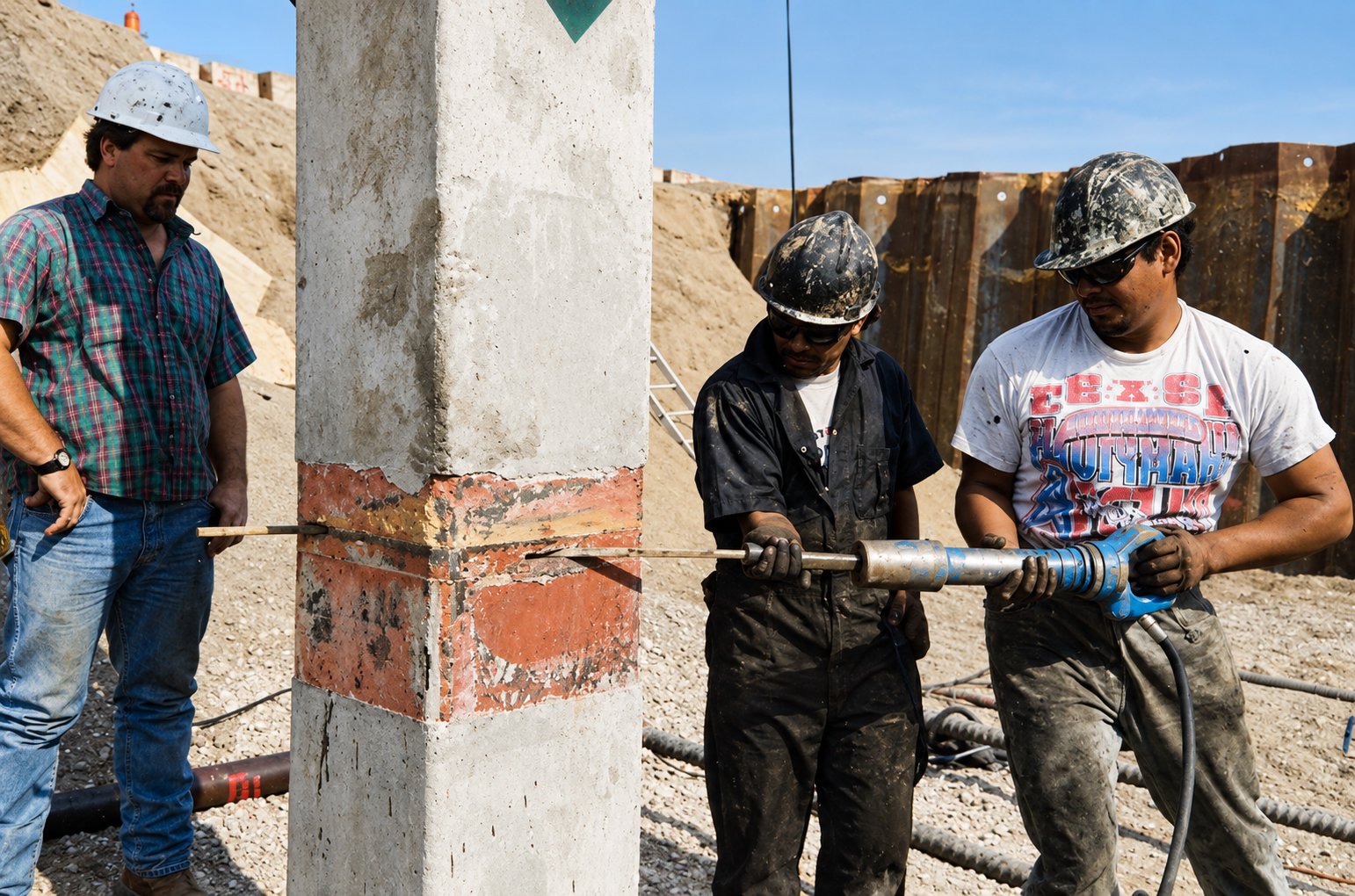

Minimal splicing time
No welding, grouting, or epoxy needed, minimizing field labor.
Proven and reliable
Tested and extensively used for 40+ years in all types of projects.
Engineering & code support
Design calculations satisfying the latest US and Canadian engineering and code standards for prestressed piles are provided for a variety of approved KIE-LOCK splices.
Get a quote for your project
Tell us your pile size, quantity and timeline. Our team will get back to you on pricing and availability.
